F 4214 Serisi Freze

Long-Life Serisi

Yüksek Hassasiyet - Yüksek Kalite - Uzun Ömür

dbbb3afa1354732463a5e28e9d5256a3

9624f3e0e2a077d8f164654e1854d89f

08cfd85ac1e21d4dae22ecba445f522b

885d29f212a3f8ec67d4f192cc75e0e2

Long-Life Serisi

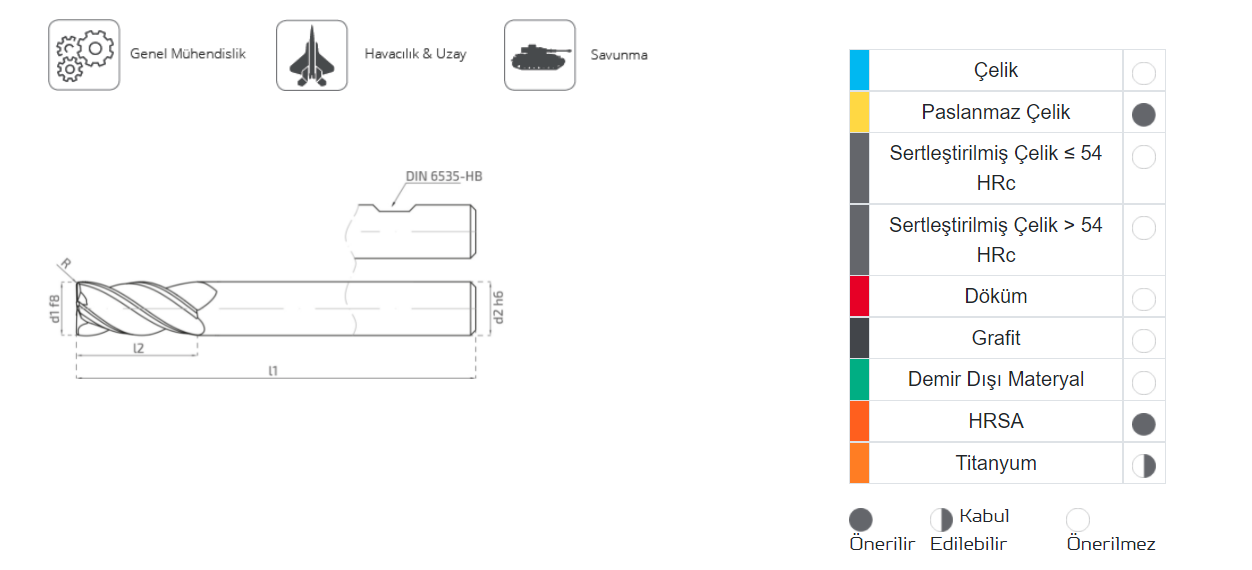

STOK	KOD	d1f8	l2	l1	d2h6	Ch	R	Z
*	F421430	3	6	46	6	Ch 0.03	-	3
*	F421431	3	6	46	6	-	0.2	4
*	F421440	4	12	58	6	-	0.2	4
	F421441	4	12	58	6	-	0.5	4
*	F421442	4	12	58	6	-	1	4
*	F421460	6	14	58	6	-	0.2	4
*	F421461	6	14	58	6	-	0.5	4
	F421462	6	14	58	6	-	1	4
*	F421480	8	23	64	8	-	0.2	4
*	F421481	8	23	64	8	-	0.5	4
*	F421482	8	23	64	8	-	2	4
*	F4214100	10	24	73	10	-	0.2	4
*	F4214101	10	24	73	10	-	0.5	4
	F4214102	10	24	73	10	-	1	4
	F4214103	10	24	73	10	-	2	4
*	F4214120	12	28	82	12	-	0.2	4
*	F4214121	12	28	82	12	-	0.5	4
	F4214122	12	28	82	12	-	1	4
	F4214123	12	28	82	12	-	2	4
	F4214124	12	28	82	12	-	4	4
	F4214160	16	38	93	16	-	0.2	4
*	F4214121	16	38	93	16	-	0.5	4
	F4214200	20	44	105	20	-	5	4
							5
SPECIAL	F421483	8	17	64	8	Ch 0.3	-	4

Parametre Değeri

Malzeme	Kanal Frezeleme	Kenar Frezeleme	Son Yüzey Frezeleme

	ap=1.0 - 0.5Ø	ap=1.5Ø / ae=0.35 - 0.20Ø	ap=1.5Ø / ae=0.20 - 0.10Ø
	Vc (m/dk)	Vc (m/dk)	Vc (m/dk)
AISI 304 - 416 - 420	50-70	70-90	80-100
AISI 316 - 440	45-70	55-80	60-90
17-4 PH 15-5 PH	45-70	55-80	60-90
Krom Kobalt Alaşım Cr - Co Ajloys	30-50	35-55	40-70
Duplex F51	60-80	65-85	70-90
Super Duplex F55	60-80	65-85	70-90
HRSA Hastelloy	30-50	40-60	50-70
HRSA lncoinel 625	30-50	40-60	50-70
HRSA lncoinel 718	30-50	40-60	50-70
HRSA Nimonic	30-50	40-60	50-70
Titanyum	60-80	70-90	80-90
Titanyum Alaşımlar	60-80	70-90	80-90

Ağız Başı İlerleme (mm/dev)

Ø	ap=1Ø	ap=0.50Ø	ae=0.35Ø	ae=0.30Ø	ae=0.25Ø	ae=0.20Ø	ae=0.15Ø	ae=0.10Ø
3	0.006	0.007	0.007	0.007	0.007	0.008	0.008	0.01
4	0.008	0.01	0.009	0.009	0.01	0.01	0.011	0.014
5	0.011	0.014	0.012	0.013	0.013	0.014	0.015	0.019
6	0.014	0.0l7	0.0l5	0.016	0.0l7	0.018	0.02	0.024
8	0.02	0.024	0.022	0.023	0.024	0.025	0.028	0.034
10	0.027	0.029	0.03	0.031	0.032	0.034	0.038	0.046
12	0.035	0.04	0.04	0.041	0.043	0.045	0.05	0.061
16	0.055	0.065	0.061	0.063	0.066	0.069	0.077	0.094
20	0.075	0.09	0.083	0.086	0.09	0.094	0.105	0.128
