M 2530 Series

3D Drill

30d1ea25e983531c587743bd7a3b0335

M3DF Series

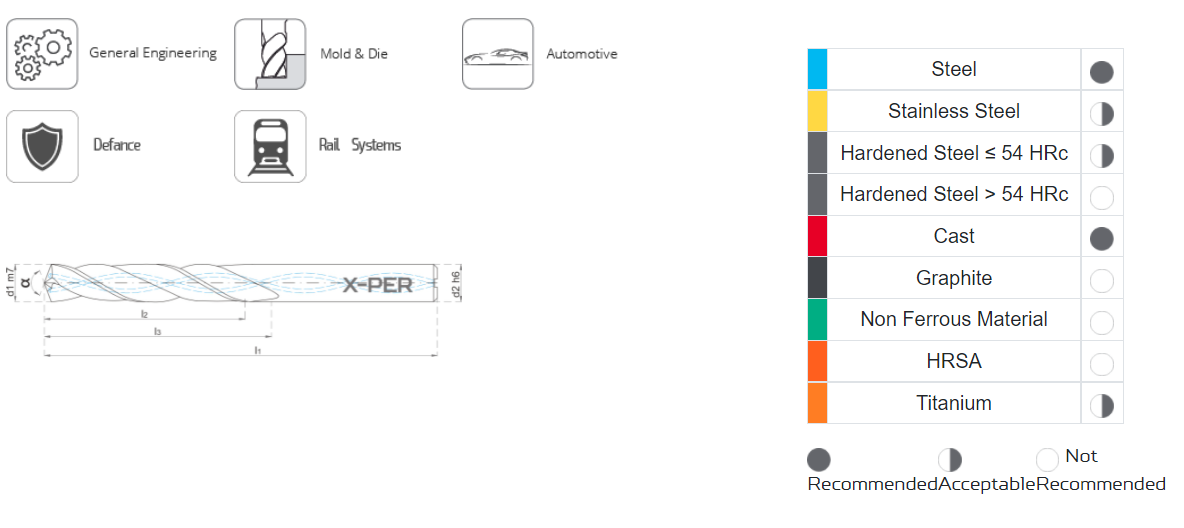

STOK	KOD	d1m7	l2	l3	l1	d2h6
*	M24152160	2.1	12	16	60	3
	M24152543	2.5	11	16	43	3
	M24152946	2.9	11	16	46	3
	M2415346	3	14	20	46	3
	M24153349	3.3	14	20	49	4
	M24153551	3.5	14	20	51	4
	M24153651	3.6	14	20	51	4
	M24155751	3.7	14	20	51	4
	M24154051	4	17	24	51	4
	M24154266	4.2	17	24	66	6
	M24154566	4.5	17	24	66	6
	M24154666	4.6	17	24	66	6
	M24155066	5	20	28	66	6
	M24155566	5.5	20	28	66	6
	M24156066	6	20	28	66	6
*	M24156579	6.5	32	35	79	8
	M24159879	6.8	24	34	79	8
	M24157079	7	24	34	79	8
	M24157579	7.5	29	41	79	8
	M24157879	7.8	29	41	79	8
	M24158079	8	29	41	79	8
	M24158489	8.045	35	47	89	10
	M24158589	8.5	35	47	89	10
	M24158889	8.8	35	47	89	10
	M24159089	9	35	47	89	10
	M24159589	9.5	35	47	89	10
	M24151089	10	35	47	89	10
	M2415102102	10.2	40	55	102	12
	M2415105102	10.5	40	55	102	12
	M241511102	11	40	55	102	12
	M2415120102	12	40	55	102	12
	M2415125107	12.5	43	60	107	14
	M2415128107	12.8	43	60	107	14
	M2415130107	13	43	60	107	14
	M2415140107	14	43	60	107	14
	M2415145107	14.5	45	65	115	16
	M2415150115	15	45	65	115	16
	M2415155115	15.5	45	65	115	16
	M2415160115	16	45	65	115	16
	M2415170123	17	51	73	123	18
	M2415175123	17.5	51	73	123	18
	M2415180123	18	51	73	123	18
	M2415185131	18.5	55	79	131	20
	M2415190131	19	55	79	131	20
	M2415195131	19.5	55	79	131	20
	M2415200131	20	55	79	131	20

Parameter Value

Material	Cutting Parameters Vc(M/min)	Recommends

Unalloyed steel	100-130	●
Steel	90-120	●
Tempered steel	90-120	●
Cold work tool steel	60-90	●
Hot work tool steel	60-90	●
AISI 304 - 416 - 420	50-55	◑
AISI 316 - 440	50-55	◑
17-4 PH 15-5 PH	40-50	◑
Chrome-Cobalt alloy	40-50	◑
Duplex F51	30-40	◑
Super duplex F55	30-40	◑
Gray cast	170-200	●
Alloyed cast	150-180	●
Precision cast	110-140	●
Titanium	30-40	◑
Titanium alloys	25-30	◑
≤ 54 HRC	60-80	◑
>54 HRC	40-55	◑

Mouth-to-mouth progress (mm / dev)

Q
3	0.022
4	0.03
5	0.035
6	0.052
8	0.09
10	0.115
12	0.135
16	0.15
20	0.175
