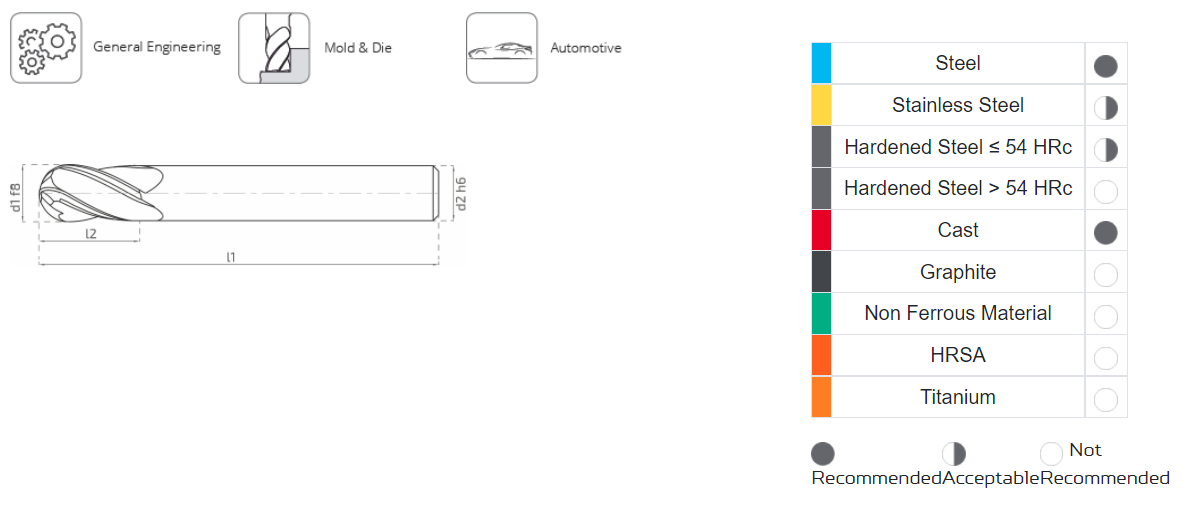

| STOK | KOD | d1h10 | l2 | l1 | d2h6 |
|---|---|---|---|---|---|
| FXKFZ430 | 3 | 12 | 38 | 3 | |
| FXKFZ440 | 4 | 14 | 51 | 4 | |
| FXKFZ450 | 5 | 20 | 51 | 5 | |
| FXKFZ460 | 6 | 20 | 58 | 6 | |
| FXKFZ480 | 8 | 20 | 64 | 8 | |
| FXKFZ4100 | 10 | 25 | 73 | 10 | |
| FXKFZ4120 | 12 | 25 | 82 | 12 |
| Material | Shoulder Milling ap=0.1Ø / ae=0.30 - 0.20Ø Vc (m/min) | Finish Milling ap=0.1Ø / ae=0.20 - 0.10Ø Vc (m/min) |
|---|---|---|
|
|
|
|
| Unalloyed steel | 200-230 | 230-260 |
| Steel | 200-230 | 230-260 |
| Tempered steel | 180-210 | 200-230 |
| Cold work tool steel | 150-180 | 180-210 |
| Hot work tool steel | 140-170 | 170-200 |
| AISI 304 - 416 - 420 | 90-120 | 120-150 |
| AISI 316 - 440 | 80-110 | 110-140 |
| 17-4 PH 15-5 PH | 80-110 | 110-140 |
| Chrome-Cobalt alloy | 70-100 | 100-130 |
| Gray cast | 280-310 | 310-350 |
| Alloyed cast | 180-210 | 210-250 |
| Precision cast | 150-180 | 180-210 |
| Ø | ae=0.30Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|---|---|
| 3 | 0.027 | 0.031 | 0.037 | 0.04 |
| 4 | 0.031 | 0.037 | 0.041 | 0.045 |
| 5 | 0.032 | 0.037 | 0.042 | 0.046 |
| 6 | 0.041 | 0.046 | 0.052 | 0.057 |
| 8 | 0.048 | 0.052 | 0.061 | 0.066 |
| 10 | 0.053 | 0.057 | 0.066 | 0.072 |
| 12 | 0.058 | 0.064 | 0.072 | 0.079 |
