Endmill

F6402 Series Milling

Long-Life Series

High Precision-High Quality - Long Life

F 6402 Short Series

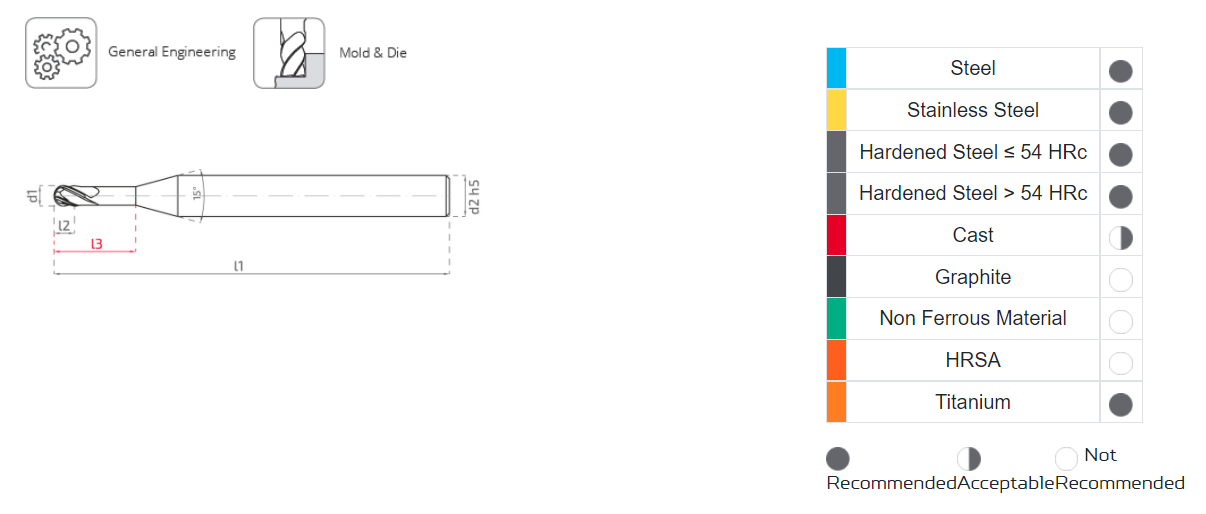

KOD d1 L2 l3 l1 d2h5
F6402K00 0.5 0.5 4 45 4
F6402K01 0.5 0.5 6 45 4
F6402K02 0.5 0.5 8 45 4
F6402K03 1 1 6 45 4
F6402K04 1 1 8 45 4
F6402K05 1 1 10 50 4
F6402K06 1 1 12 50 4
F6402K07 1.5 1.5 6 45 4
F6402K08 1.5 1.5 8 45 4
F6402K09 1.5 1.5 10 50 4
F6402K10 1.5 1.5 12 50 4
F6402K11 2 2 6 45 4
F6402K12 2 2 8 45 4
F6402K13 2 2 10 50 4
F6402K14 2 2 12 50 4



F 6402 Long Serisi

KOD d1 L2 l3 l1 d2h5
F6402U00 1 1 16 50 4
F6402U01 1 1 20 50 4
F6402U02 1.5 1.5 16 50 4
F6402U03 1.5 1.5 20 50 4
F6402U05 2 2 16 50 4
F6402U06 2 2 20 50 4

Parameter Value

Material Shoulder Milling ap=0.10Ø /ae=0.20 - 0.10Ø Vc (m/min)
Unalloyed steel 170-220
Steel 170-220
Tempered steel 140-180
Cold work tool steel 140-180
Hot work tool steel 110-150
AISI 304 - 416 - 420 80-130
AISI 316 - 440 70-120
17-4 PH 15-5 PH 70-100
Cobalt-Chrome alloys 60-100
Duplex F51 50-80
Super duplex F55 50-80
Gray cast 110-150
Titanium 30-60
Titanium alloys 30-60
≤ 54 HRC 100-140
>54 HRC 70-90

Mouth-to-mouth progress (mm / dev)

Ø ae=0.20Ø ae=0.10Ø
1 0.015 0.02
1.5 0.018 0.025
2 0.022 0.031
