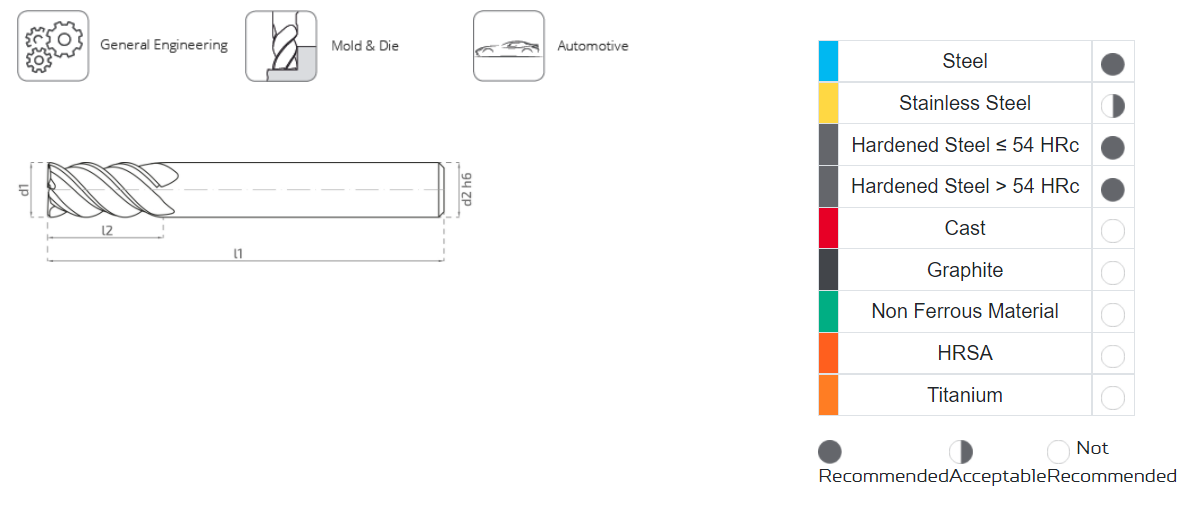

| STOK | KOD | d1 | l2 | l1 | d2h6 | Z |
|---|---|---|---|---|---|---|
| F431130 | 3 | 8 | 45 | 6 | 4 | |
| F431140 | 4 | 11 | 45 | 6 | 4 | |
| F431150 | 5 | 13 | 50 | 6 | 4 | |
| F431160 | 6 | 20 | 60 | 6 | 4 | |
| F431180 | 8 | 20 | 60 | 8 | 4 | |
| F4311100 | 10 | 22 | 70 | 10 | 4 | |
| F4311120 | 12 | 26 | 75 | 12 | 4 |
| Material | Shoulder Milling | Shoulder Milling | |
|---|---|---|---|
|
|
|
|
|
| ap=1.5Ø/ae=0.05Ø | ap≤1Ø ae≤0.03Ø (D<Ø3) | ||
| Vc(m/dk) | ae≤0.05Ø (D≥Ø3)max: 0.5mm Vc(m/dk) | ||
| Sertleştirilmiş Çelik / 45-55 HRc | Sertleştirilmiş Çelik / 48-63 HRc | ||
| 3 | 140-160 | 90-110 | |
| 4 | 140-160 | 90-110 | |
| 5 | 180-220 | 110-130 | |
| 6 | 180-220 | 110-130 | |
| 8 | 180-220 | 110-130 | |
| 10 | 180-220 | 110-130 | |
| 12 | 180-220 | 110-130 |
| Ø | Ø | ||
|---|---|---|---|
| 3 | 0.02 | 3 | 0.015 |
| 4 | 0.025 | 4 | 0.02 |
| 5 | 0.03 | 5 | 0.025 |
| 6 | 0.035 | 6 | 0.03 |
| 8 | 0.045 | 8 | 0.035 |
| 10 | 0.05 | 10 | 0.04 |
| 12 | 0.06 | 12 | 0.045 |
